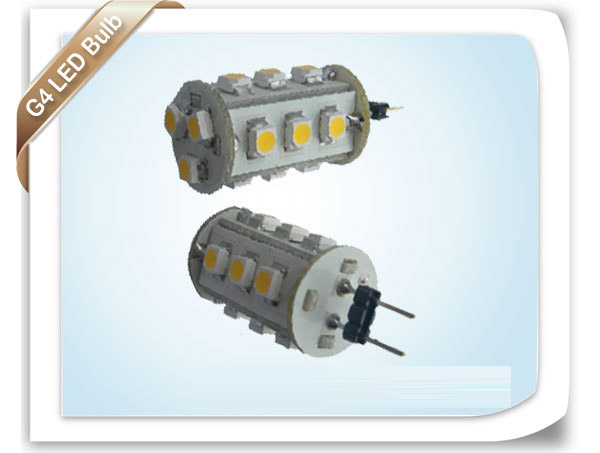

| JJW-G4-3528W15C |
 |
1 15 pcs high bright SMD3528
2 0.9W 90lm,can replace 10-30W halogen bulb
3 Wide voltage,9-18VAC/9-28VDC
4 Beam angle 360 degree
5 Small size Φ13.5*36.5*13.5mm
6 CE,RoHS approved |

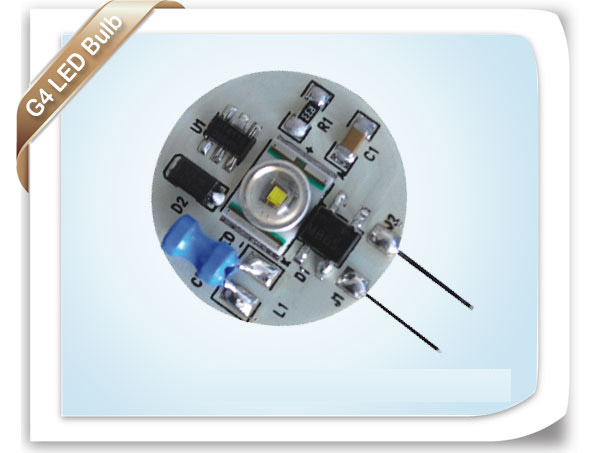

| JJW-G4-CW1 |
 |
1 1 pcs high brightness Edison
2 1W 100lm,can replace 10-30W halogen bulb
3 Wide voltage,9-18VAC/9-28VDC
4 Beam angle 140 degree
5 Small size 35*28*13mm
6 CE,RoHS approved |
| JJW-G4-5050W9 |
 |
1 9 pcs high brightness SMD5050
2 1.6W 162lm,can replace 10-30W halogen bulb
3 Wide voltage,9-18VAC/9-28VDC
4 Beam angle 120 degree
5 Small size 40*30.5*8.5mm
6 CE,RoHS approved |

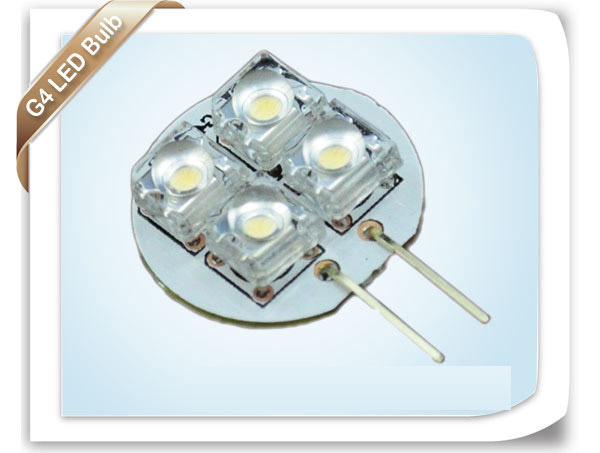

| JJW-G4-P5W4 |
 |
replaced by FD-G4-5050W7 and cancled from Dec. 2011
1 4 pcs high bright superflux P5
2 0.56W 32lm,can replace 10-30W halogen bulb
3 Wide voltage,9-18VAC/9-28VDC
4 Beam angle 80 degree
5 Small size 35.5*26*8.5mm
6 CE,RoHS approved |

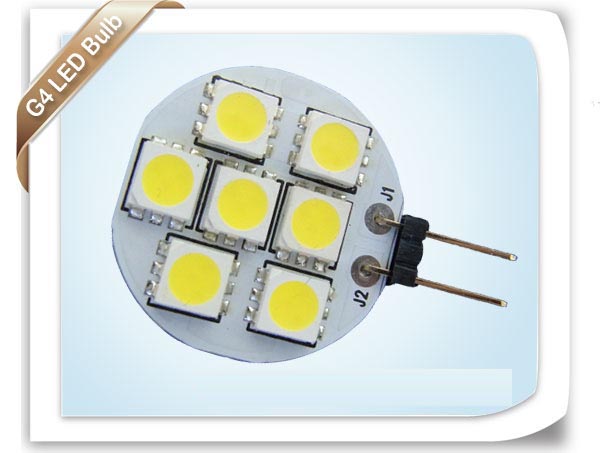

| JJW-G4-5050W7 |
 |
1 7 pcs high bright SMD5050
2 1.44W 126lm,can replace 10-30W halogen bulb
3 Wide voltage,9-18VAC/9-28VDC
4 Beam angle 120 degree
5 Small size 36*26*8.5mm
6 CE,RoHS approved |

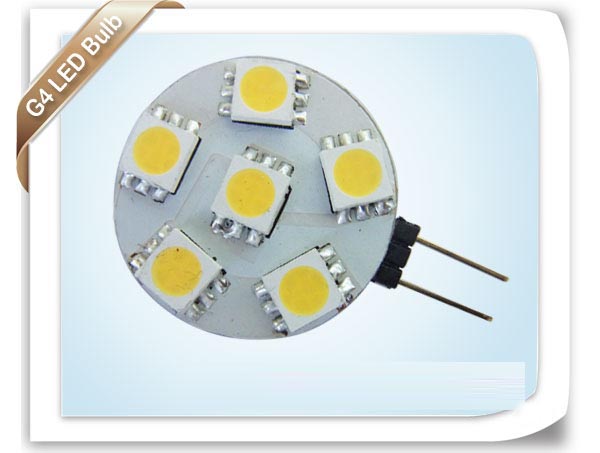

| JJW-G4-5050W6 |
 |
1 6 pcs high brightness SMD5050
2 1.44W 108lm,can replace 10-30W halogen bulb
3 Wide voltage,9-18VAC/9-28VDC
4 Beam angle 120 degree
5 Small size 34*24*8.5mm
6 CE,RoHS approved |

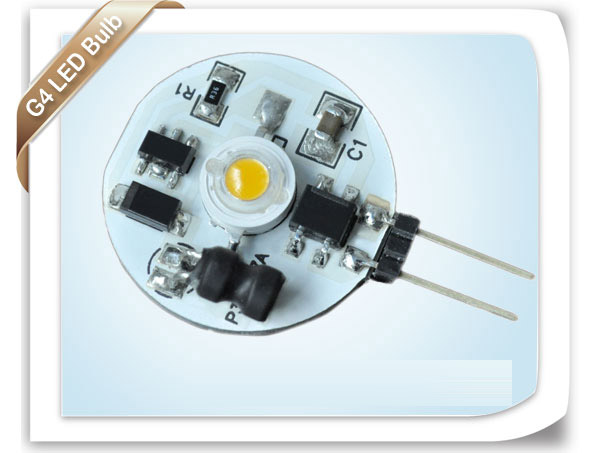

| JJW-G4-EW1 |
 |
1 1 pcs high brightness Edison
2 1W 90lm,can replace 10-30W halogen bulb
3 Wide voltage,9-18VAC/9-28VDC
4 Beam angle 140 degree
5 Small size 35*24*8.5mm
6 CE,RoHS approved |
|
