Products Show

Description:

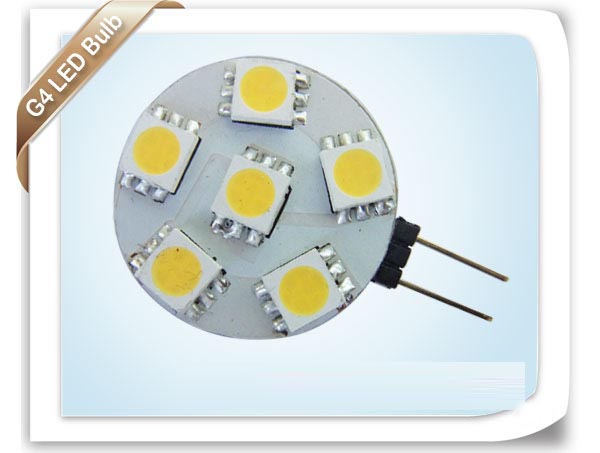

1 6 pcs high brightness SMD5050
2 1.44W 108lm,can replace 10-30W halogen bulb
3 Wide voltage,9-18VAC/9-28VDC
4 Beam angle 120 degree
5 Small size 34*24*8.5mm
6 CE,RoHS approved

Feature:

Base:G4
Main material:choice aluminum panel
Long life span:more than 50,000 hours.
Ideal replacement of 12VDC/VAC halogen bulb
Available:warm white, commercial white,pure white
Wide use:car bulb,ceiling light,cabinet light and so forth.



Parameter:


Part NO. LED Quantity Power Lumen Beam Angle Work Voltage Work
Temperature
Color
JJW-G4-5050W6 6 pcs 1.44W 108lm 120° 9-18VAC/9-28VDC -40-50℃ WW/CW/PW



Dimension of JJW-G4-5050W6:



Package:




Application:


Under the same brightness,the power of LED G4 is just 16% of the Halogen JC,but the life of G4 is 16.6 times as that of Halogen.
