Features:
Available lengths from 0.5meter to 5meters.
It can be cut every 5 centimeters(every 3 leds are cutable).
It is easy to install with 3M sticky back tape on the backside.
Standard length is 5 meters per reel with 10-15cm electric cable wire.
PCB Material: Flexible copper,PCB color is golden, white or blank is available.
Life span: 50,000 hours.
Emitting color: Red, Green, Blue, Yellow, Warm white, Pure white, Cool White.
Working Voltage:DC 12VDC(24VDC is available).
Working Temperature: -40 ~ 50 ℃.
Ambient Humidity: 0% ~ 95% relative humidity.
Parameter:
Part NO. |
Waterproof Rating |
LED Type |
LED Quantity |
Power |
Beam Angle |
Work Voltage |
Work
Temperature |
Emitting Color |
Parkage |
JJW-LR5050XN60T |
IP20 |
SMD5050 |
60leds/meter |
14.4W/meter |
120° |
12VDC |
-40~50℃ |
Red/Green/Blue/Yellow/White |
5 meters/reell |
Dimension of JJW-LR5050XN60T

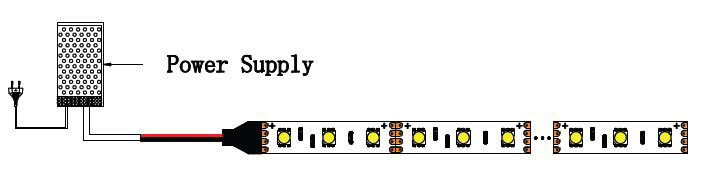

Connection Graph:
Installation:
Package:
Application:
LED strip light can be applied for wide range of areas, indoor and outdoor. It can be sticked onto the wall and other objects, or twined round
pillar or other objects, decorating door, hall, corridor, cabinet, sculpture, plants, etc.
|
