Products Show

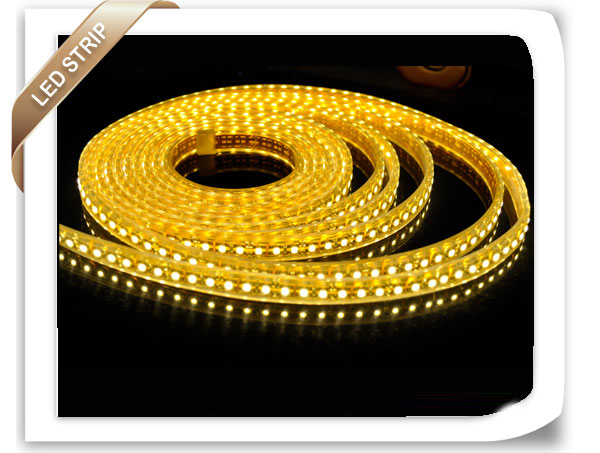

Description:
1 Waterproof, IP67 2 Red/Green/Blue/Yellow/White available 3 120leds per meter,9.6W per meter 4 5 meters per reel,packed in anti-static bag and then in carton box 5 Certificate: CE and RoHs

Feature:

Features:


Available in lengths from 0.5meter to 5meters.
It can be cut every 5 centimeters.
It is easy to install with screw in mounting clips.
Standard length is 5 meters per reel with 10-15cm electric cable wire.
PCB Material: Flexible copper,PCB color is white, golden or black is available.
Life span: 50,000 hours.
Emitting color: Red, Green, Blue, Yellow, Warm white, Commercial White, Pure White.
Working Voltage:DC 12VDC(24VDC is available).
Working Temperature: -40 ~ 50 ℃.
Ambient Humidity: 0% ~ 95% relative humidity.








Parameter:

Part NO.  Waterproof  Rating LED Type  LED Quantity Power Beam Angle  Work Voltage Work
Temperature
Emitting Color   Parkage
JJW-LR3528XP120T-S IP67  SMD3528 120leds/meter 9.6W/meter 120° 12VDC -40-50℃ Red/Green/Blue/Yellow/White 5 meters/reel



Dimension of JJW-LR3528XP120T-S:



Connection Graph:

Installation:



Package:

Application:


LED strip light can be applied for wide range of areas, indoor and outdoor. It can be sticked onto the wall and other objects, or twined
round pillar or other objects, decorating door, hall, corridor, cabinet, sculpture, plants, etc.
