Features:
Available in lengths from 0.5meter to 5meters.
It can be cut every 10 centimeters.
It is easy to install with 3M sticky back tape on the backside.
Standard length is 5 meters per reel with 10-15cm electric cable wire.
PCB Material: Flexible copper,PCB color is white, golden or blank is available.
Life span: 50,000 hours.
Emitting color: Red, Green, Blue, Yellow, Warm white, commercial white, pure white.
Working Voltage:DC 12VDC(24VDC is available).
Working Temperature: -40 ~ 50 ℃.
Ambient Humidity: 0% ~ 95% relative humidity.
Parameter:
| Part NO. |
Waterproof Rating |
LED Type |
LED Quantity |
Power |
Beam Angle |
Work Voltage |
Work
Temperature |
Emitting Color |
Parkage |
| JJW-LR5050XP30T-E |
IP65 |
SMD5050 |
30leds/meter |
7.2W/meter |
120° |
12VDC |
-40-50℃ |
Red/Green/Blue/Yellow/White |
5 meters/reel |
Dimension of JJW-LR5050XP30T-E:

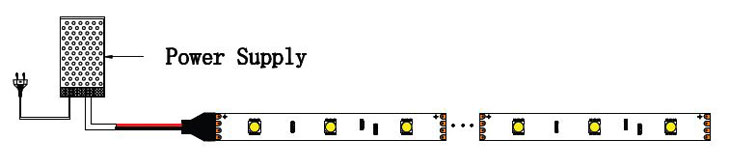

Connection Graph:
Installation:
Package:
Application:
LED strip light can be applied for wide range of areas, indoor and outdoor. It can be sticked onto the wall and other objects, or twined
round pillar or other objects, decorating door, hall, corridor, cabinet, sculpture, plants, etc.
DIY:
12V strips could be cutted of every 3 led, 24V strips could be cutted of every 6leds. So we can use the connector to reconnect them, please click on the link to refer how to use the connector.
