Products Show

Description:

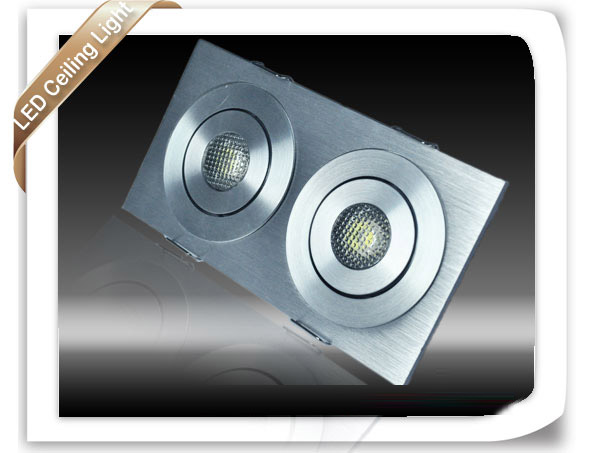

1 Size(mm): 113.5×59.5,cutout(mm):105×50 2 High brightness 1W Edison or 3W Cree lights 3 Material:aluminum 4 Long lifespan 50,000 5 work voltage:12VDC 6 Certificate: CE and RoHs

Feature:

Feature:





1.constant current circuit is built-in.

2.Take the advantage of stability of the power supply to avoid the LED failure caused by the voltage surge, shock or other damages.

High power efficiency: improved by 6% comparing with the conventional constant current driver.

3.Easy connection: Any quantity of downlight can be wired in parallel connection within the rated wattage of the Power supply and all the downlight can work separately.

4.Easy power: supply. All the down-light can work with Quasar power supply or others
available in the market.

5.Excellent design: Proprietary design for excellent thermal management and lumen maintenance,and reverse polarity protected.

6.High output: white , commercial white and warm white LED.

Reverse polarity protected.

7.Warranty:3 years warranty.







Parameter:

Part NO. LED Brand Watt /pcs LED Quantity Power Lumen Beam Angle Work Voltage Work
Temperature
Color
JJW-CLEW2X1T-52 Edison 1W 2 pcs 2W 180lm 30 / 45 / 60° 12VDC -40-50℃ WW/CW/PW
JJW-CLCW2X3T-52 Cree 3W 2 pcs 6W 360lm 30 / 45 / 60° 12VDC -40-50℃ WW/CW/PW





Dimension of JJW-CLEW2x1T-52 / JJW-CLCW2x3T-52:





 Connection Graph:



Installation:



Package:




Application:


To replace traditional bulbs, especially for museums, art galleries, restaurants, hotels, certain sales counters, bars, celebration places where UV or IR radiation is undesirable.
