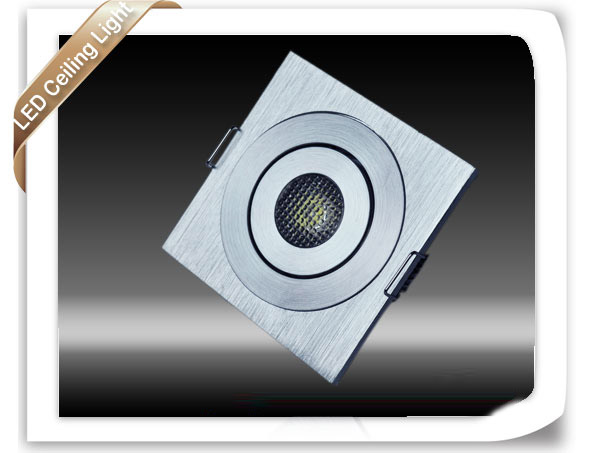

Feature:
1.constant current circuit is built-in.
2.Take the advantage of stability of the power supply to avoid the LED failure caused by the voltage surge, shock or other damages.
High power efficiency： improved by 6% comparing with the conventional constant current driver.
3.Easy connection: Any quantity of downlight can be wired in parallel connection within the rated wattage of the Power supply and all the downlight can work separately.
4.Easy power: supply. All the down-light can work with Quasar power supply or others
available in the market.
5.Excellent design: Proprietary design for excellent thermal management and lumen maintenance,and reverse polarity protected.
6.High output: white , commercial white and warm white LED.
Reverse polarity protected.
7.Warranty:3 years warranty.
Parameter:
| Part NO. |
LED Brand |
Watt /pcs |
LED Quantity |
Power |
Lumen |
Beam Angle |
Work Voltage |
Work
Temperature |
Color |
| JJW-CLEW1X1T-51 |
Edison |
1W |
1 pcs |
1W |
90lm |
30 / 45 / 60° |
12VDC |
-40-50℃ |
WW/CW/PW |
| JJW-CLCW1X3T-51 |
Cree |
3W |
1 pcs |
3W |
180lm |
30 / 45 / 60° |
12VDC |
-40-50℃ |
WW/CW/PW |
Dimension of JJW-CLEW1X1T-51 / JJW-CLCW1X3T-51:
Installation:
Package:
Application:
To replace traditional bulbs, especially for museums, art galleries, restaurants, hotels, certain sales counters, bars, celebration places where UV or IR radiation is undesirable.
|
