| 1 Size:￠26*600mm
2 9W,900lm,input voltage 85-265VAC,50/60Hz
3 2835SMD LED, 100lm/w,CRI>80
4 Isolated driver,PF>0.9
5 Glass Cover with 330° beam angle
6 50000H long lifespan,2 years warranty
7. CE RoHS UL FCC certificated |
Basic Parameters of T8 LED Tube with Glass Cover
|
Parameters
|
Description
|
|
Power
|
9W
|
|
Size
|
￠26*590mm 2ft |
|
Material
|
Aluminum+Glass Cover
|
|
Input Voltage
|
|
|
LED
|
|
|
LED Quantity
|
|
|
Flux
|
|
|
Light Efficiency
|
100lm/w
|
|
Driver
|
Internal Isolated Driver
|
|
Lamp Base
|
G13
|
|
Power Factor
|
>0.9 |
|
Beam Angle
|
330 Deg
|
|
Color Rendering Index(RA)
|
Ra>80
|
|
Lifespan
|
-20℃∽+70℃
|
|
Operation Temperature
|
-30℃∽+50℃
|
| Color Temperature |
Warm White/Natural White/Cool White |
| Lifespan |
50000H |
|
Warranty
|
2 years
|
|
Certificate
|
CE RoHS FCC UL
|
Key Features of T8 LED Tube with Glass Cover
● Instant start capable, no flickering, no huming, friendly to eyes
● G13 lamp base , esay to install, can be mounted directly, save labor cost for clients
● Internal isolated driver, PF>0.9, the lamp can work under unstable voltage, safe to clients
● Light source: 2835 SMD Epistar LED chip,100lm/w
● 50000 hours long lifespan and at least 2 years warranty time (PS: UL FCC certificated tube has 5 years warranty)
● Patented cooling system, Operating surface temperature is below 60℃
● CE RoHS UL FCC approved
● Environment-friendly,free of mercury and lead, recyclable, green high tech lighting product
● No need accessories,no need traditional driver and reflector
● Wide input voltage: 85-265VAC, 50/60Hz
● Glass cover with 330° Wide Beam Angle
● Energy Savings: saving 70%-80% energy than fluorescent tube.
● Good color vision: color temperature can be adjusted from 2500-10000K

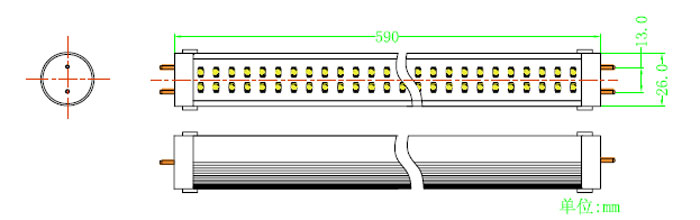

Dimension of T8 LED Tube with Glass Cover
Installation
Package
Application
Room lighting, house lighting,office lighting, commercial lighting,supermarket lighting, bus interior lighting etc.
|
