Basic Parameters of 3014SMD LED

Parameters	Description
Power	0.1W
Size	3.0*1.4mm
Forward Voltage	3.0-3.6V
Current	30mA
Luminous Flux	10-12lm
Viewing Angle	120 Deg
Color Rendering Index(RA)	80Ra
Operation Temperature	-20℃∽+70℃
Storage Temperature	-30℃∽+80℃
Color Temperature	Warm White/Natural White/Cool White
Lifespan	50000H
Warranty	2 years
Certificate	CE RoHS

Key Features of 3014SMD LED

1. The vertical structure: Chip direct conduction fins to improve the heat dissipation performance

2. Oversized light-emitting surface: to improve the rate of light: up to 90%

3. Super stability: low light fades material, process, process maturity and stability

4. Original, high quality materials

5. Long lifes pan: 50000hrs

6. Long Warranty: 2 years

7. Reply your enquiries within 12 working hours

8. Direct replacement conventional lamp

9. Excellent heat dissipation design, more safe and durable

10.Environmental friendly, no mercury and lead-free

11. Different color for choice: Blue, Red, Green, Yellow, Pink, Ice Blue

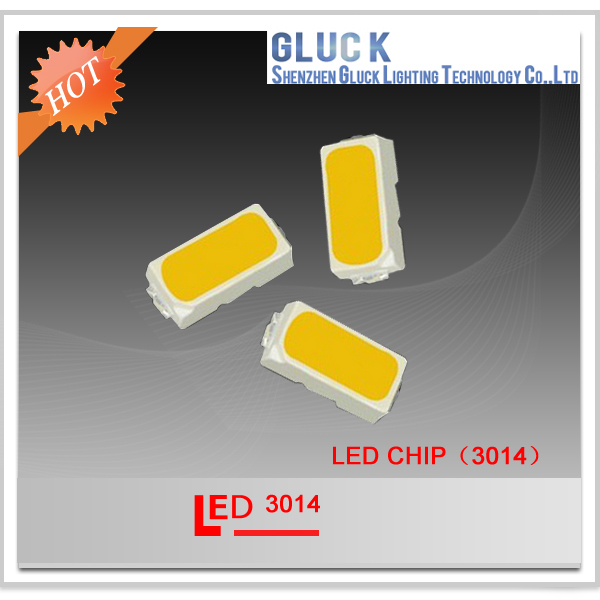

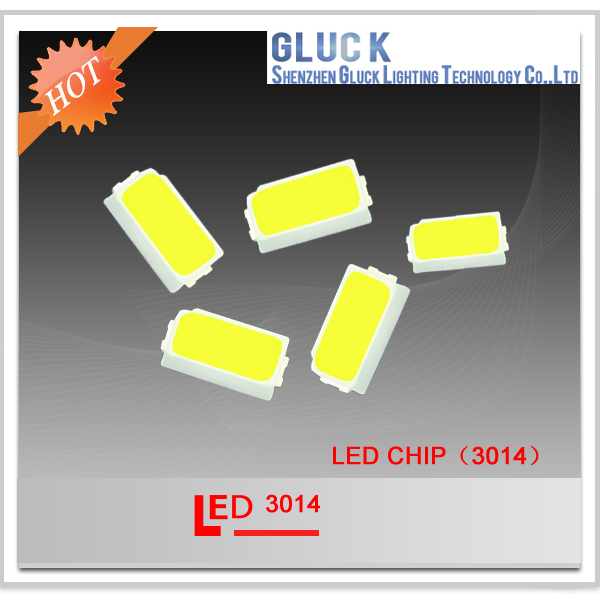

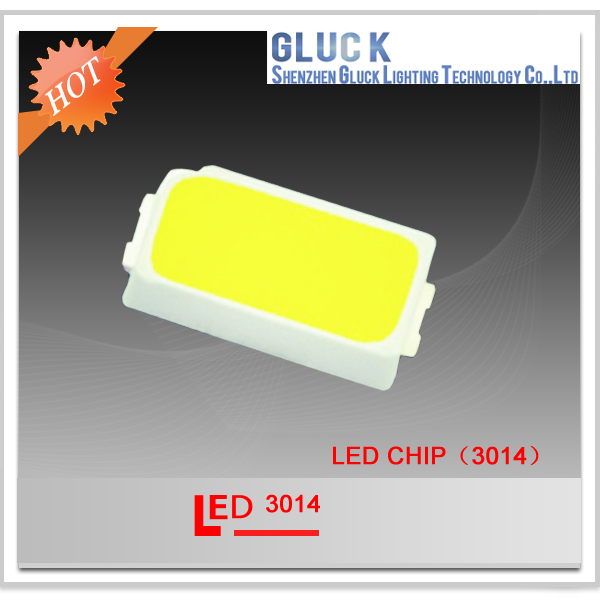

3014SMD LED Detail Pictures Show

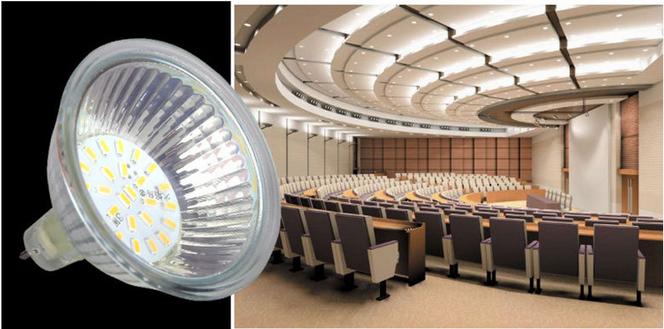

3014SMD LED Application

3014SMD LED widely used in led spot light, led tube, led strip, led ceiling light, led linear light, led downlight, led panel light, led bulb, led corn light, led plug light. etc. such LED lights

3014SMD LED Certificate

JJW 3014SMD LED was approved by CE RoHS FCC certificate, quality is perfect. Pls be assured you can use it safely.

Production Line Show

As a professional LED manufacture in China, producing and supplying LED since 2007. JJW Group Limited has several production lines and perfect production hardware equipments,we can produce more than 6000KKpcs SMD LED per month. Based on strict quality control system and professional service, JJW products get highly appreciated by clients both in domestic and foreign countries. JJW professional inspectors will check every peoduct very carefully, every led has to go through at least 8 hours aging test before they go out, quality is perfect.
