Technical parameters
● working temperature: -20-60 ℃
optional(specify the required voltage on order form)
● output: 3 channels
● external dimensions: L130ΧW40ΧH52mm
● package size: L140ΧW50ΧH60 mm
● net weight: 95g
● gross weight: 120g
● static power consumption: <1W
● output current: <4A
● output power:5v<60W, 12v<144W, 24v<288W

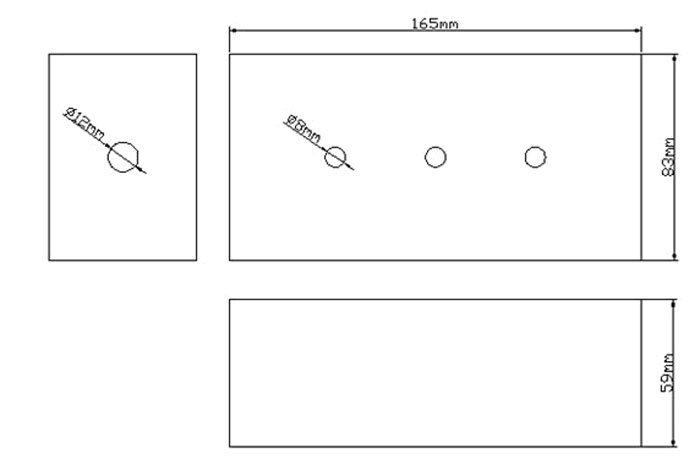

Dimension of JJW-DM03:
Direction for Use
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power.

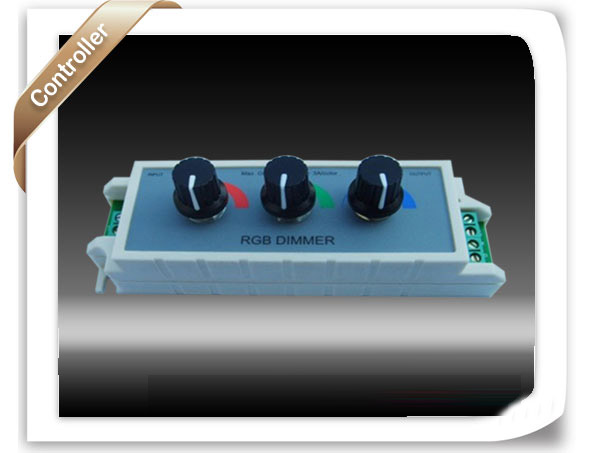

2. Adopt rotary button,there are three load output channels,its function as follows:
Rotate button to the right,brightness will be brighter,when you rotate it to the far right,the brightness is greatest.
Rotate button to the left,brightness will be darker,when you rotate it to the far left,the light will be turned off. |
