Technical parameters
●Working temperature: -20-60 ℃
● Supply voltage: DC5V, 12V, 24V
● Output: 1 channel
● External dimension: L86ΧW86ΧH62 mm
● Packing size: L160ΧW95ΧH51 mm
● Net weight: 105g
● Gross weight: 125g
● Static power consumption: <1W
● Output current: <8A
● Power output: 5V<40W, 12V<96W,24V<192W

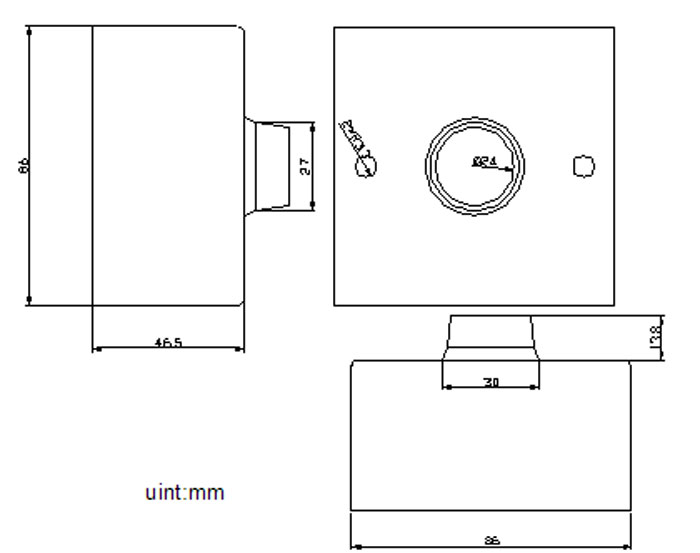

Dimension of JJW-DM02:
Interface Specifications

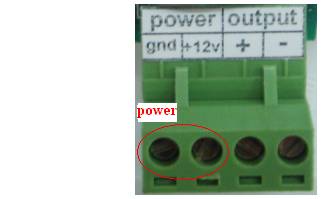

Powerinput interface:
Adopt male and female connector with screw.
Load output interface:
Adopt male and female connector with screw.
Direction for use
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

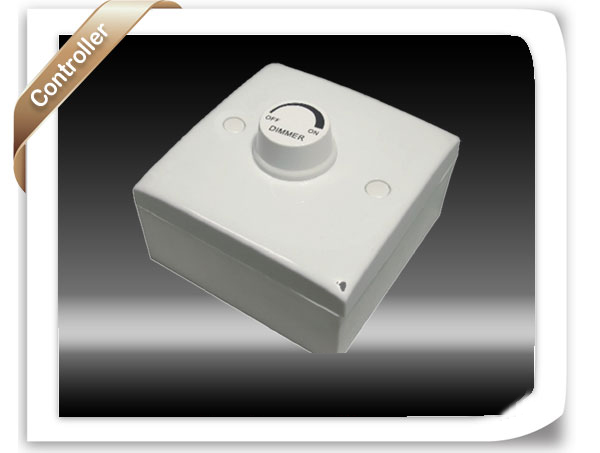

2. Adopt rotary button, its function as follows:
Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the brightness is greatest.
Rotate button to the left, brightness will be darker, when you rotate it to the far left, the light will be turned off. |
