● Working temperature：-20-60 ℃

  ● Supply voltage: DC5V, 12V, 18V, 24V <optional >(for orders specify voltage)

  ● 0utput: 3 channels

  ● Connecting mode：common anode

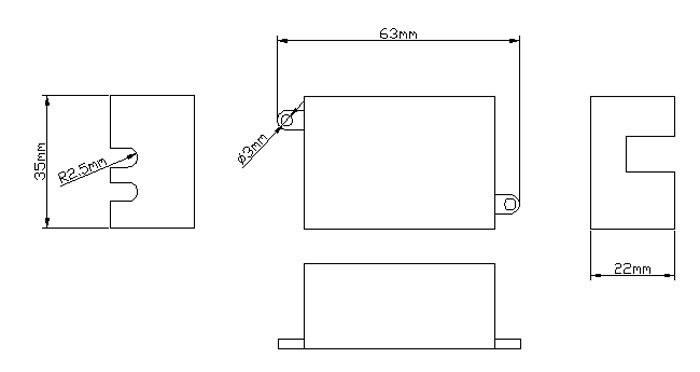

● External dimension：L63ΧW35ΧH22 mm

● Packing size：L105ΧW65ΧH40 mm

 ● Net weight: 50 g

 ● Gross weight: 70 g

 ● Static power consumption: <1 W

 ● Output current: <2 A (each channel)

 ● Output power: 5 V: <30W, 12V: <72W, 24V: <144W









          Powerinput interface:

 Adopt conventional power Transposon as a DC power input interface.

           Infrared receiver interface:

Adopt oblate three-way wire，and connect an infrared receiver to receive an external infrared.

Load output interface:

                                      Adopt oblate interface.
