Technical Parameters
● Working temperature：-20-60 ℃
● Supply voltage: DC5V, 12V, 24V optional (specify the required voltage on orders)
● 0utput: 3 channels
● Connecting mode：common anode
● External dimension：L42.8ΧW10ΧH0.8 mm
● Packing size：L43ΧW11ΧH2 mm
● Net weight: 5 g
● Gross weight: 7 g
● Static power consumption: <0.01 W
● Output current: <0.08 A (each channel)
● Output power: 5V:<1.2 W, 12V:<2.88 W, 24V:<5.88 W

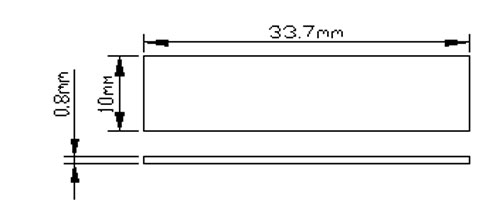

Dimension of JJW-CT11:
Interface Specifications

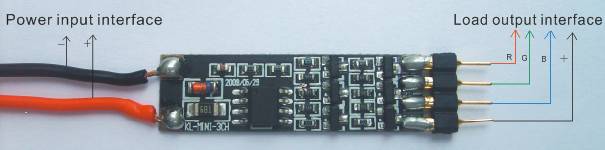

Power input interface and load output interface are remarked in follow picture, please refer to it.
Direction for use
Automatically complete change after turning on the power, needn’t any setting; Please ensure short circuit can not occur between connecting wire before you turn on the power. |
