General Description:

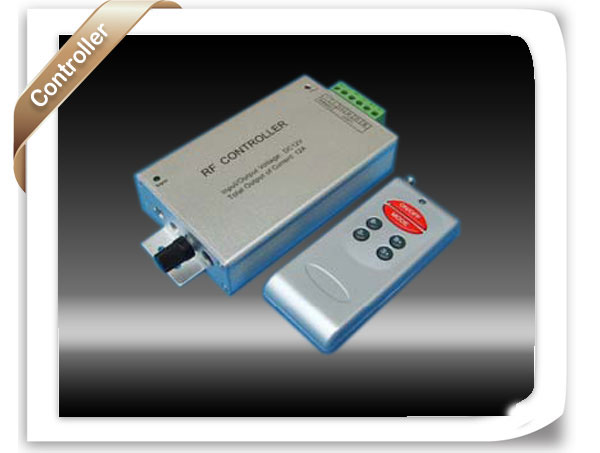

RF Audio controller adopts the advanced micro control unit, it is used for controlling a variety of
lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer
lamp, glass curtain wall light and so on; At the same time, it has many advantages such as
convenient connection, simplicity to use and others. According to the actual need of customers, it can
carry out jumpy changing, gradual changing, strobe flash and other effects of changes

Direction for use

1. Connect the load wires at first, following by the power wires; Please ensure short circuit can not
occur between connecting wires before you turn on the power;
2. Adopt RF control, there are six buttons altogether. Each function as follows:
“ON/OFF”: open or close load output
“MODE”：mode choosing button, 13 modes in all
“B+”: brightness control button; The step of the brightness will add one by each press
“B-”: brightness control button; The step of the brightness will subtract one by each press
“S+”: The step of the speed will add one by each press
“S-”: The step of the speed will substract one by each press

Note: When the external microphone and audio signal input at the same
time, system will process the audio signal.
