General Description:

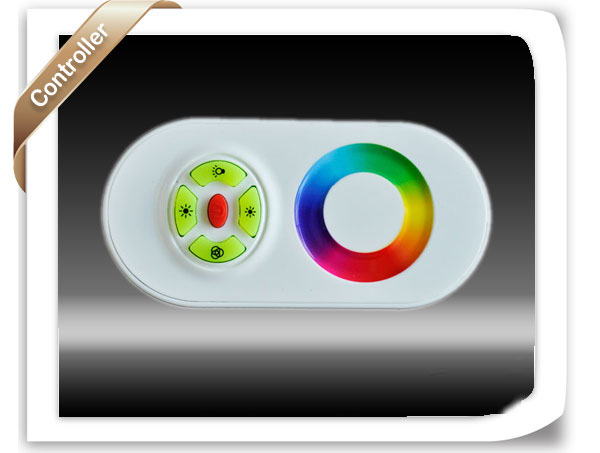

JJW-CT08 used for LED lamps which installed controller with telecontroller support, it can remote
control the lamps on, off and the basic lighting, meanwhile it can also control the brightness and color
of the light. Product Size: 114*56*22mm
Direction for use
1. Installation of the telecontroller battery.
Open the battery cover which on the back of the telecontroller, load 3 AAA batteries correctly as per
the positive and negative instructions in the battery pack.
Notice: When load the battery, please keep not to touch the color ring or use the palm to cover the
color ring, use the telecontroller after 10 seconds. If happening the situation of touching color ring
without reaction after change the battery, please take off the batteries, and reload the battery after 10
seconds.
2. Press-key function of the telecontroller as follow:
4)、 Turn up the light: it can control the brightness of the lamp increase in any modes, it can
increase one grade after pressing one time, the total is 8 grades.
5)、 Turn down the light: it can control the brightness of the lamp reduction in any modes, it can
reduce one grade after pressing one time, the total is 8 grades.
6)、 Color ring: in the color lighting mode, slide the finger on the color ring, choose the color you
need optionally, and the color ring is only effective for the body finger.
example
1)、Key-press of the switch: red key, switch on or switch off.
2)、 Color lighting: control the lamp into the color lighting mode, press 3 seconds after into the
color lighting mode, it can control the lamp into the color gradient mode, the light can change the color
automatically, if keeping the morden color, please press the key again.
3)、 White lighting: control the lamp into the white lighting mode, as the basic lighting for daily life. |
