JJW-96-12（24）

Products

News Products

No Data!

Products Show

Description：

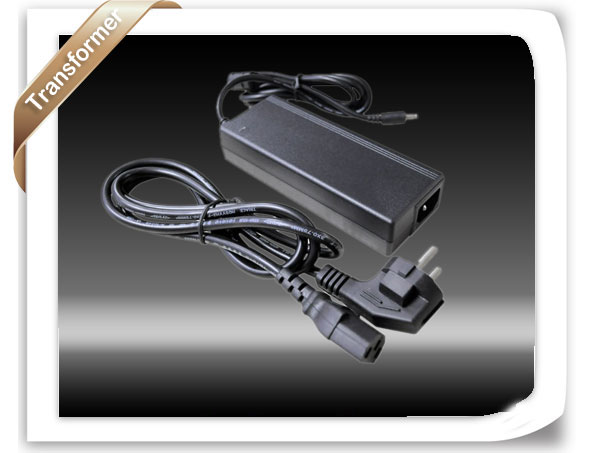

1 Size:148X57X32mm (L*W*H) 2 Output Current: 8A or 4A 3 Output Voltage: 12V or 24V DC 4 Input: 100-240V,0.6KG

Feature:

Features:
Certification: CE and RoHs
Dimensions(mm):148X57X32mm (L*W*H)
Weight(Kg):0.6
Input Voltage Range(v): 100-240 V
Max Output power(w): 96 W
Output Voltage: 12or24 VDC

JJW-96-12

Used with LED lighting fixtures

Part No. Parameter	JJW-96-12
Part No. Parameter	Min	Typical	Max	Unit
Input AC Current	----	----	1.7	A
Input Voltage	----	100-240	----	VAC
Voltage & Frequency	47	50/60	63	Hz
Power factor	0.614	----	0.673	----
No load power	----	----	----	W
Output current	----	8	----	A
Output voltage	----	12	----	V
Output power	----	92	----	W
Output voltage ripple	80	----	84	%
Total efficiency	30000	----	----	Hour
Service life	3	----	----	Second
Repeatedly to start interval	----	Yes	----	----
Over temperature protection	----	Yes	----	----
Output short circuit protection	-40	----	70
Work environment	-40	----	85	℃
Storage environment	10	----	90	%（RH）
Relative humidity	70	----	106	KPA
Atmospheric pressure	----	----	1.7	A
Dimension	156.2mm X 60mm X 39.7 mm

JJW-96-24

Part No. Parameter	JJW-96-24
Part No. Parameter	Min	Typical	Max	Unit
Input AC Current	----	----	1.7	A
Input Voltage	-----	100-240	----	VAC
Voltage & Frequency	47	50/60	63	Hz
Power factor	----	----	0.7	----
No load power	----	----	----	W
Output current	----	----	4	A
Output voltage	----	----	24	V
Output power	----	----	96	W
Output voltage ripple	----	----	----	mV
Total efficiency	----	----	89	%
Service life	30000	----	----	Hour
Repeatedly to start interval	3	----	----	Second
Over temperature protection	----	Yes	----	----
Output short circuit protection	----	Yes	----	----
Work environment	-25	----	40	℃
Storage environment	-40	----	80	℃
Relative humidity	10	----	95	%(RH)
Atmospheric pressure	70	----	106	KPA

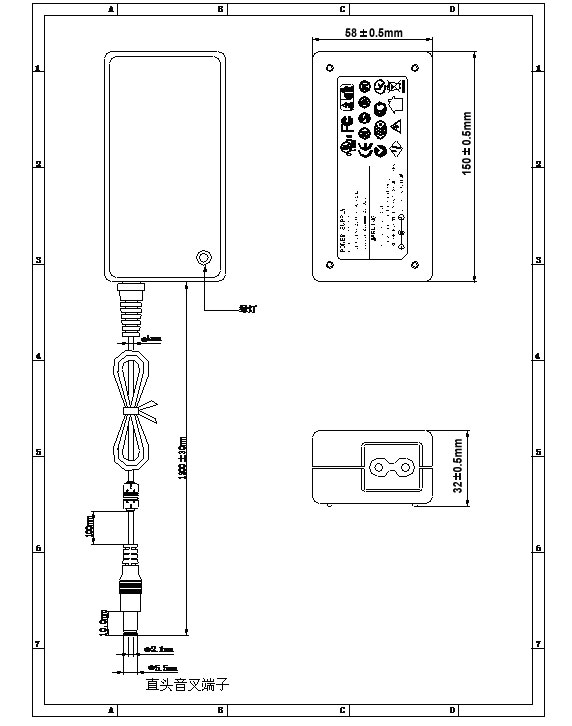

Dimension	150mm X 58mm X 32 mm
