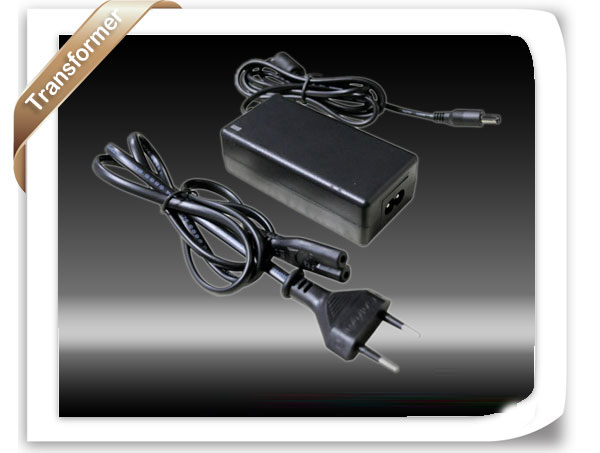

Features:
Certification: CE and RoHs
Dimensions(mm):115X49.5X30.5mm (L*W*H)
Weight(Kg):0.6
Input Voltage Range(v): 100-240 V
Max Output power(w): 60 W
Output Voltage: 12or24 VDC











JJW-60-12











Part No. Parameter	JJW-60-24
	Min	Typical	Max	Unit
Input AC Current	----	----	1100	mA
Input Voltage	100	100-240	265	VAC
Voltage & Frequency	47	50/60	63	Hz
Power factor	0.54	----	0.60	----
No load power	----	----	1	W
Output current	----	2500	----	mA
Output voltage	----	24	----	V
Output power	----	59	60	W
Output voltage ripple	----	----	----	mV
Total efficiency	86	----	89	%
Service life	30000	----	----	Hour
Repeatedly to start interval	3	----	----	Second
Over temperature protection	----	Yes	----	----
Output short circuit protection	----	Yes	----	----
Work environment	-25	----	40	℃
Storage environment	-40	----	80	℃
Relative humidity	10	----	95	%
Atmospheric pressure	70	----	106	KPA
Dimension	108mm X 46mm X 30  mm
