Products Show

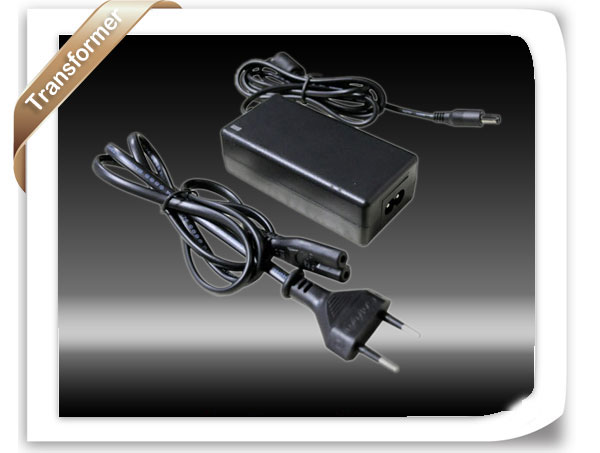

Description：
1 Size:107.5X45.5X30mm (L*W*H) 2 Output Current: 4A or 2A 3 Output Voltage: 12V or 24V DC 4 Input: 100-240V,0.25KG

Feature:
Features:
Certification: CE and RoHs
Dimensions(mm):107.5X45.5X30mm (L*W*H)
Weight(Kg):0.25
Input Voltage Range(v): 100-240 V
Max Output power(w): 48 W
Output Voltage: 12or24 VDC






JJW-48-12

                                 Part No.
Parameter
JJW-48-12
Min
Typical
Max
Unit
Input AC Current
----
----
950
mA
Input Voltage
----
100-240
----
VAC
Voltage & Frequency
47
50/60
63
Hz
Power factor
0.51
----
0.64
----
No load power
----
----
1
W
Output current
----
4000
----
mA
Output voltage
----
12
----
V
Output power
----
46
48
W
Output voltage ripple
----
----
----
mV
Total efficiency
78
----
81
%
Service life
30000
----
----
Hour
Repeatedly to start interval
3
----
----
Second
Over temperature protection
----
Yes
----
----
Output short circuit protection
----
Yes
----
----
Work environment
-25
----
40
℃
Storage environment
-40
----
80
℃
Relative humidity
10
----
95
%
Atmospheric pressure
70
----
106
KPA
Dimension
108mm X 46mm X 30  mm







JJW-48-24



                                 Part No.
Parameter
JJW-48-24
Min
Typical
Max
Unit
Input AC Current
----
----
920
mA
Input Voltage
----
100-240
----
VAC
Voltage & Frequency
47
50/60
63
Hz
Power factor
0.52
----
0.60
----
No load power
----
----
1
W
Output current
----
2000
----
mA
Output voltage
----
24
----
V
Output power
----
47
48
W
Output voltage ripple
----
----
----
mV
Total efficiency
86
----
89
%
Service life
30000
----
----
Hour
Repeatedly to start interval
3
----
----
Second
Over temperature protection
----
Yes
----
----
Output short circuit protection
----
Yes
----
----
Work environment
-25
----
40
℃
Storage environment
-40
----
80
℃
Relative humidity
10
----
95
%
Atmospheric pressure
70
----
106
KPA
Dimension
108mm X 46mm X 30  mm







Applications:
Used with LED lighting fixtures















Download:
