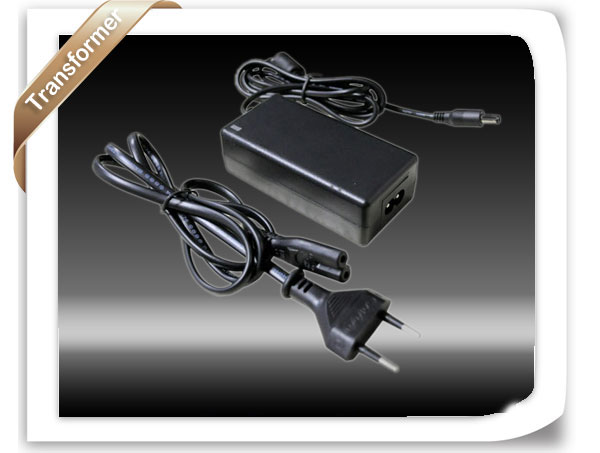

JJW-36-12(24)

Features:
Certification: CE and RoHs
Dimensions(mm):95.5X46.5X30mm (L*W*H)
Weight(Kg):0.25
Input Voltage Range(v): 170-240 V
Max Output power(w): 36 W
Output Voltage: 12or24 VDC

Part No.

Parameter

JJW-36-12

Min

Typical

Max

Unit

Input AC Current

----

----

710

mA

Input Voltage

----

100-240

----

VAC

Voltage & Frequency

47

50/60

63

Hz

Power factor

0.56

----

0.64

----

No load power

----

----

1

W

Output current

----

----

3000

mA

Output voltage

----

----

12

V

Output power

----

35

36

W

Output voltage ripple

----

----

----

mV

Total efficiency

77

----

83

%

Service life

30000

----

----

Hour

Repeatedly to start interval

3

----

----

Second

Over temperature protection

----

Yes

----

----

Output short circuit protection

----

Yes

----

----

Work environment

-25

----

40

℃

Storage environment

-40

----

80

℃

Relative humidity

10

----

95

%（RH）

Atmospheric pressure

70

----

106

KPA

Dimension

96*46.8*30.5mm

Applications:
Used with LED lighting fixtures
