A. Adopt built-in 1W high power LED as light source, single color and RGB
type, can emit excellent light effects and magnificent colors.

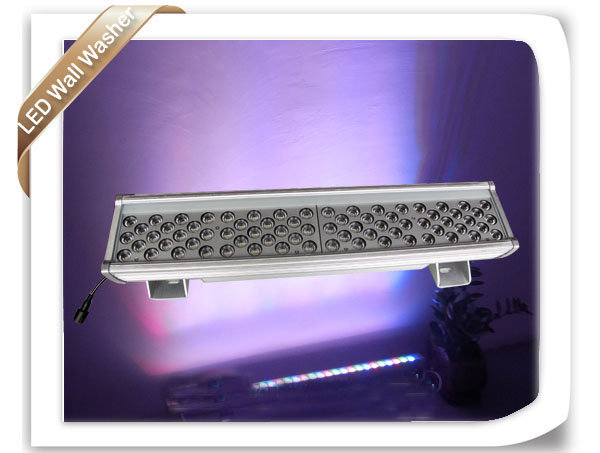

B. This new type Wall washer made up of two parts, first part is light body and the other one includes power supply and controller box, which makes this wall washer different with other wall washers.
C. It has lighter weight, safe and stable quality and it is easy for maintenance. The unique isolated module design makes better waterproof, longer lifespan, and better heat dissipation, easier control.

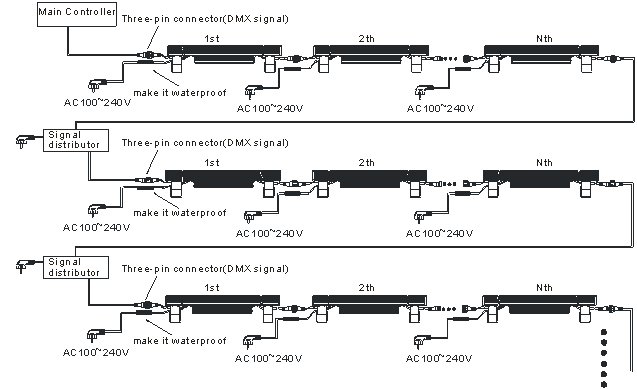

D. Hand in hand connection among lights, signals, power supply, makes easier installation, more conveniently connection..
E, There are 14 kinds of build-in programs which can be operated at the DMX window. This wall washer can also be controlled by outside DMX 512 controller or super DMX Console to achieve more different lighting effects. It can achieve whole or isolated light effect control.
Basic specification:
Item NO.
|
Single Color
|
RGB Color
|
Light Quantity
|
JJW-WWHX72V-M
|
JJW-WWHX108V-M
|
JJW-WWHX144V-M
|
JJW-WWHQ72V-M
|
JJW-WWHQ108V-M
|
FD-WWHQ144V-M
|
Rated Voltage
|
AC100-240V,50~60Hz
|
Light Source
|
High power 1W pure white LED
|
High power 1W RGB LED
|
MAX Power
|
108 pcs
|
144 pcs
|
108 pcs
|
144 pcs
|
108 pcs
|
144 pcs
|
Luminous Flux (pure white）
|
4265 lm
|
6100lm
|
8000lm
|
1900lm（white）
|
2250lm（white）
|
3800lm（white）
|
Max Power
|
91.2W
|
131.4W
|
172.2W
|
98.1W
|
118W
|
180W
|
Viewing Angle
|
50°
|
50°
|
50°
|
50°
|
50°
|
50°
|
Connection port
|
Build-in Control mode, Control box, control console
|
Net Weight
|
6.2
|
7.6
|
9.5
|
6.2
|
7.6
|
9.5
|
IP Rank
|
IP65
|
Color temperature(K)
|
6000-6500(Pure White)
2800-3300(Warm White)
|
Rendering index
|
CRI>75
|
Lifespan(h)
|
>30,000
|
Ambient Temperature℃
|
-20℃ ~ +45℃
|
|
