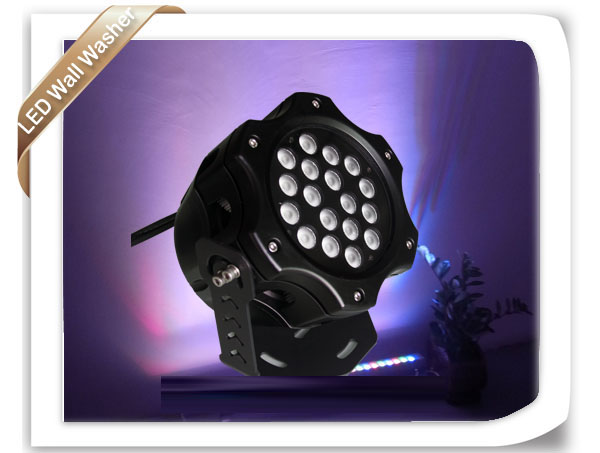

Single color flood light：Pure white, warm white, red, green, blue, viewing angle 50°.
RGB flood light：Beam angle 60°, With inside 13 kinds of effect， connect exteriorcontrol box or exterior console for different options so that can control all units together or some sections separately. Red, Green, Blue, Jumping changing, gradual changing, flash changing and other effects of fourteen kinds. With digital display window and adjusted buttons, it is easy for customers to adjust different programs.
Basic specification
Item
|
|
Part No.
|
JJW-WWHX18V-R
|
JJW-WWHQ18V-R
|
Dimension(mm)
|
R200*H196mm
|
R200*H196mm
|
|
18pcs
|
18pcs
|
Luminous Flux
|
1700lm
|
|
Light source
|
|
|
Power consumption(W)
|
36W
|
36W
|
Weight(kg)
|
4.8kg
|
4.8kg
|
Connection port
|
Power supply: 3-pins bare rubber cable 3X1.0mm2
|
Power supply: 3-pins bare rubber cable 3X1.0mm2
Signal: Two-core shielded cable（T type）
|
Main material
|
Aluminum
|
Aluminum
|
IP Rate
|
IP65
|
IP65
|
Lens angle
|
50° flat surface
|
60° spherical surface
|
Length of external cable (standard)
|
1m
|
Input Voltage
|
AC100~240V,50~60Hz
|
Color temperature(K)
|
6000-6500(Pure White)
2800-3300(Warm White)
|
Rendering index
|
CRI>75
|
Lifespan(h)
|
>30,000
|
Ambient Temperature℃
|
-20℃ ~ +45℃
|
Item
|
|
|
Part No.
|
JJW-WWHX36V-R
|
JJW-WWHQ36V-R
|
Dimension(mm)
|
R258*H254mm
|
R258*H254mm
|
|
36pcs
|
36pcs
|
Luminous Flux
|
3200lm
|
|
Light source
|
|
|
Power consumption(W)
|
75W
|
72.2W
|
Weight(kg)
|
9.1kg
|
9.2kg
|
Connection port
|
Power supply: 3-pins bare rubber cable 3X1.0mm2
|
Power supply: 3-pins bare rubber cable 3X1.0mm2
Signal: Two-core shielded cable（T type）
|
Main material
|
Aluminum
|
Aluminum
|
IP Rate
|
IP65
|
IP65
|
Lens angle
|
50° flat surface
|
60° spherical surface
|
Length of external cable (standard)
|
1m
|
Input Voltage
|
AC100~240V,50~60Hz
AC100~240V,50~60Hz
|
Color temperature(K)
|
6000-6500(Pure White)
2800-3300(Warm White)
|
Rendering index
|
CRI>75
|
Lifespan(h)
|
>30,000
|
Ambient Temperature℃
|
-20℃ ~ +45℃
|

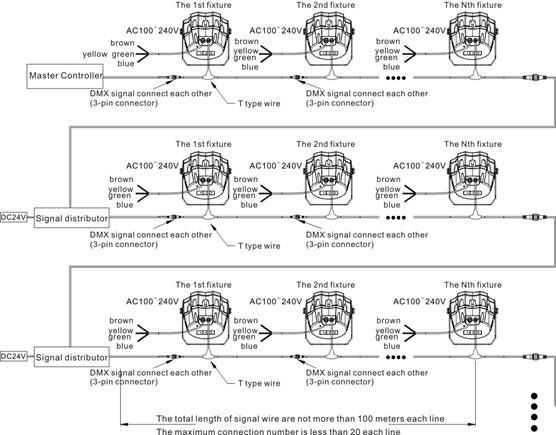

Diagram for installation and connection
 |
