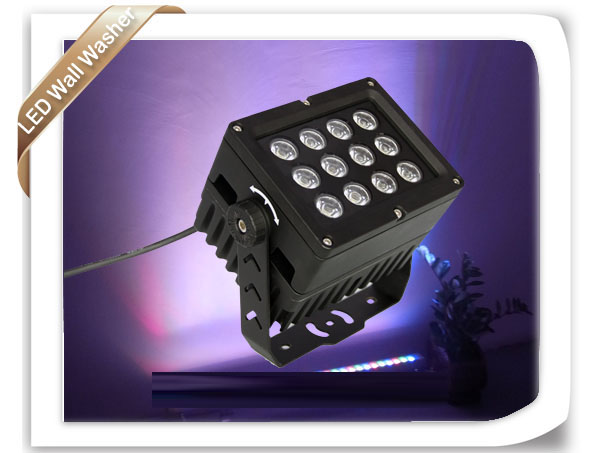

We use 1W high power LED as light source for new Square LED Wall Washer. It has features, of novel appearance, low consumption, long lifespan (fifty thousand for average life), resistance impact, High reliability, environment-friendly, soft light, high brightness and so on. This new type of led wall washer made up of two parts, first part is light body and the other one includes power supply and controller box, which makes this wall washer different with other wall washers so that let it have good heat-dissipating function.
Single color：Pure white、warm white、red、green、blue、 Viewing angle:30°
RGB color：Viewing angel is 50°,built-in 13 kinds of light effect，also can separately connect DMX console 、DMX controller box to achieve the color change control in whole or segments, such as red、green、blue、jump change 、gradual , flicker etc. Totally 14 types. It is with digital display window and control buttons to let the customers adjust stand-alone mode more convenient.
Basic specification
Item NO.
|
JJW-WWHX12V-M
|
JJW-WWHX24V-M
|
JJW-WWHX36V-M
|
JJW-WWHQ12V-M
|
JJW-WWHQ24V-M
|
JJW-WWHQ36V-M
|
Light Quantity
|
12led
|
24led
|
36led
|
12led
|
24led
|
36led
|
Rated Voltage
|
AC100~240V
|
MAX Power
|
16.2
|
29
|
56
|
16.8
|
29.6
|
56.5
|
Luminous Flux
|
780
|
1325
|
2206
|
270
|
500
|
740
|
Viewing Angle
|
30°Bead surface
|
30°Bead surface
|
30°Bead surface
|
50°Matte surface
|
50°Matte surface
|
50°Matte surface
|
Light Source
|
1W high power single color LED
|
1W high power RGB color LED
|
Length of Standard exposed wire
|
1m
|
Signal Standard
|
|
DMX512 agreement, RGB 3 channels
|
Connection port
|
Power supply：3-pin rubber bare wire 3X1.0mm2
|
Power supply：3-pin rubber bare wire 3X1.0mm2
Signal wire:2-pin Shielding wire ( T-type wire,IP68 Connector)
|
Net Weight
|
2.3
|
4.4
|
5.9
|
2.4
|
4.5
|
6
|
IP Rank
|
IP65
|
Color temperature(K)
|
6000-6500(Pure White)
2800-3300(Warm White)
|
Rendering index
|
CRI>75
|
Lifespan(h)
|
>30,000
|
Ambient Temperature℃
|
-20℃ ~ +45℃
|

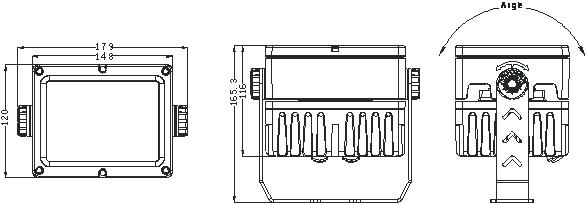

12 LED Second-generation Square wall washer
24 LED Second-generation Square wall washer
36 LED Second-generation Square wall washer

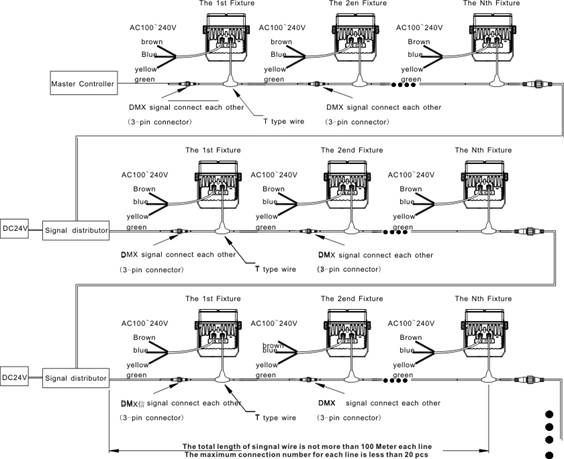

Diagram for installation and connection
|
