High brightness,adopting super bright SMD5050.
It is easy to install with 3M sticky back tape on the backside
Life span: 50,000 hours.
Emitting color: Red, Green, Blue, Yellow, Warm white, Pure white, Cool White or any other single color.
Working Voltage:12VDC
Working Temperature: -40 ~ 50 ℃.
Ambient Humidity: 0% ~ 100% relative humidity
Parameter:
| Part NO. |
Waterproof Rating |
LED Type |
LED Quantity |
Power |
Beam Angle |
Work Voltage |
Work
Temperature |
Emitting Color |
Parkage |
| JJW-MD5050W4-A |
IP68 |
SMD5050 |
4leds |
1.44W |
120° |
12VDC |
72lm |
Red/Green/Blue/Yellow/White |
Bubble bag and carton |
Dimension of JJW-MD5050W4-A:

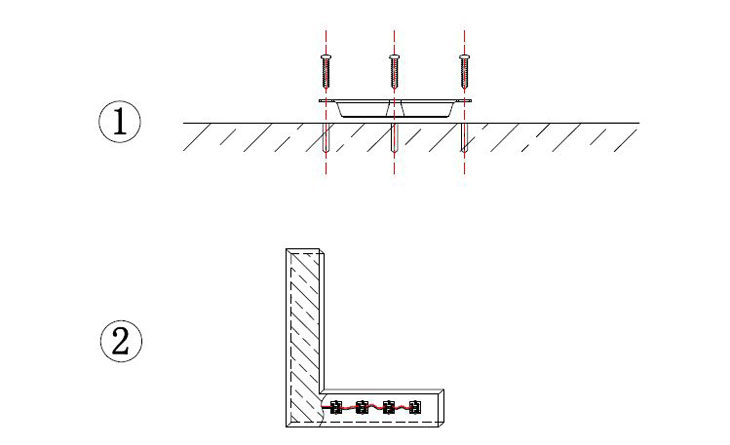

Installation:
Application:
Channel letter light backlight.
outdoor sign backlight.
outdoor advertisement sign backlight.
advertisement light box.
use for bar, hotel, restaurants.
|
