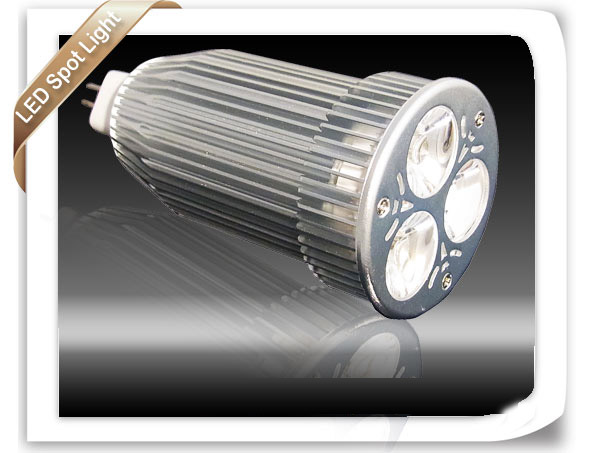

| 1 Base type: MR16.
2 Power consumption: 9W.
3 Light source:3 pcs Edison/Cree 3W.
4 Color available: white, warm white, cold white, red, green, blue, yellow.
5 IP rating: IP20, indoor use only.
6 Certificate: CE,RoHS approved |
Description：
1. Base type: MR16.
2. Power consumption: 9W.
3. Light source: 3 pcs Edison/Cree 3W.
4. High brightness,480-540lm.
5. Beam angle: 30,45,60 degree.
6. Color available: white, warm white, cold white, red, green, blue, yellow.
7. IP rating: IP20, indoor use only.
Feature:
Energy-saving: environment friendly and only 20% power consumption of halogen lamp and incandescent lamp.
Long lifespan: More than 50,000 hours.
Excellent heat sink: Aluminum and stable circuit design.
Material: Molded Aluminum housing.
Beam angle: 30°/45°/60°.
Certificate: CE and RoHS.
Anti-shock, Anti-moisture and No glare, No strobe light.
Parameter:
| Part NO. |
LED Brand |
Watt /pcs |
LED Quantity |
Power |
Lumen |
Beam Angle |
Work Voltage |
Work
Temperature |
Color |
| JJW-MR16CW3x3V-A |
Cree |
3W |
3 pcs |
9W |
540lm |
30 / 45 / 60° |
100-240VAC |
-40-50℃ |
WW/CW/PW |
Dimension of JJW-MR16W3X3T-A:
Illumination map(Edison light):
Package:
Application:
It is the best replacement for traditional halogen lamp, and widely applied in store, display window, hotels, house, exhibition halls,
and other local decorative lighting projects,especially places where UV or IR radiation is undesirable.
 |
