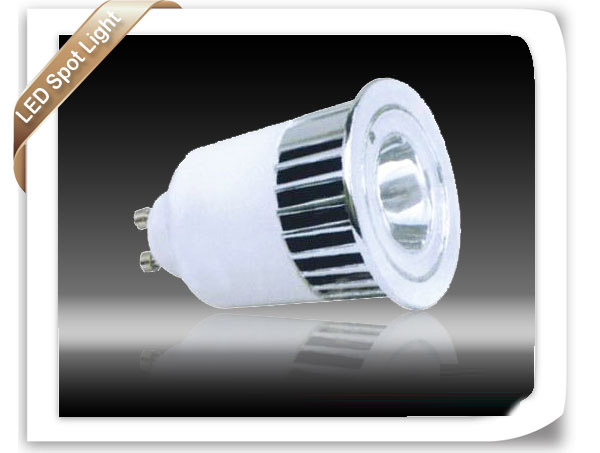

| 1 Base type: GU10.
2 Power consumption: 5W.
3 Light source:1 pcs Edison 5W.
4 High brightness,280lm.
5 Color available: white, warm white, cold white, red, green, blue, yellow.
6 Certificate: CE,RoHS approved. |
Description：
1. Base type: GU10.
2. Power consumption: 5W.
3. Light source:1 pcs 5W
4. High brightness,280lm..
5. Beam angle: 68 degree..
6. Color available: white, warm white, cold white, red, green, blue, yellow.
7. IP rating: IP20, indoor use only.
Feature:
Energy-saving: environment friendly and only 20% power consumption of halogen lamp and incandescent lamp.
Long lifespan: More than 50,000 hours.
Excellent heat sink:Aluminum and stable circuit design.
Material: Molded Aluminum housing.
Beam angle: 68°.
Certificate:CE and RoHS.
Anti-shock, Anti-moisture and No glare, No strobe light.
Parameter:
| Part NO. |
LED Brand |
Watt /pcs |
LED Quantity |
Power |
Lumen |
Beam Angle |
Work Voltage |
Work
Temperature |
Color |
| JJW-GU10W1X5V-C |
Edison |
5W |
1 pcs |
5W |
280lm |
68° |
100-240VAC |
-40~50℃ |
WW/CW/PW |
Dimension of JJW-GU10W1X5V-C:
Illumination map(Edison light):
Package:
Application:
It is the best replacement for traditional halogen lamp, widely applied in stores, display windows, hotels, houses, exhibition halls,
and other local decorative lighting projects, especially places where UV and IR radiation is undesirable.
 |
