Products Show

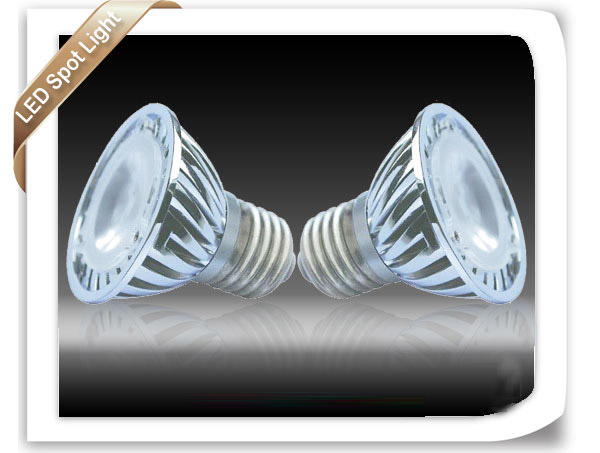

Description:
1 Base type: E27. 2 Power consumption: 1W. 3 Light source:1 pcs Edison/Cree 3W. 4 IP rating: IP20, indoor use only. 5 Certificate: CE,RoHS approved

Feature:

Description:

1. Base type: E27.
2. Power consumption: 3W.
3. Light source:1 pcs 3W.
4. High brightness,160-180lm.
5. Beam angle: 30°/45°/60° degree .
6. Color available: white, warm white, cold white, red, green, blue, yellow.
7. IP rating: IP20, indoor use only.



Feature:

Energy-saving: environment friendly and only 20% power consumption of halogen lamp and incandescent lamp.
Long lifespan: More than 50,000 hours.
Excellent heat shink:Aluminum and stable circuit design.
Material: Molded Aluminum housing.
Beam angle: 30°/45°/60°.
Certificate:CE and RoHs.
Anti-shock, Anti-moisture and No glare, No strobe light.








Parameter:

Part NO. LED Brand Watt /pcs LED Quantity Power Lumen Beam Angle Work Voltage Work
Temperature
Color
JJW-E27EW1X3V-S Edison 3W 1 pcs 3W 160lm 30 / 45 / 60° 100-240VAC -40~50℃ WW/CW/PW
JJW-E27CW1X3V-S Cree 3W 1 pcs 3W 180lm 30 / 45 / 60° 100-240VAC -40~50℃ WW/CW/PW




Dimension of JJW-E27W1X3V-S:




Illumination map(Edison light):





Package:




Application:


It is the best replacement for traditional halogen lamp, widely applied in stores, display windows, hotels, houses, exhibition halls,
and other local decorative lighting projects, especially places where UV and IR radiation is undesirable.
