Features:
High brightness SMD5050
Life span: 50,000 hours
Working Voltage:12V DC
Emitting color: RGB
Working Temperature: -40 ~ 50 ℃
Ambient Humidity: 0% ~ 100% relative humidity
Completely waterproof, can （light in the water）work under the water
Aluminum material for the good heat dissipation
with 2 clips and 4 screws per piece for installation
Parameter:
| Part NO. |
Waterproof Rating |
LED Type |
LED Quantity |
Power |
Beam Angle |
Work Voltage |
Work
Temperature |
Emitting Color |
Package |
| JJW-LB5050QP60T-A |
IP68 |
SMD5050 |
60leds |
10.6W |
120° |
12VDC |
-40℃~50℃ |
RGB |
Bubble bag and carton |

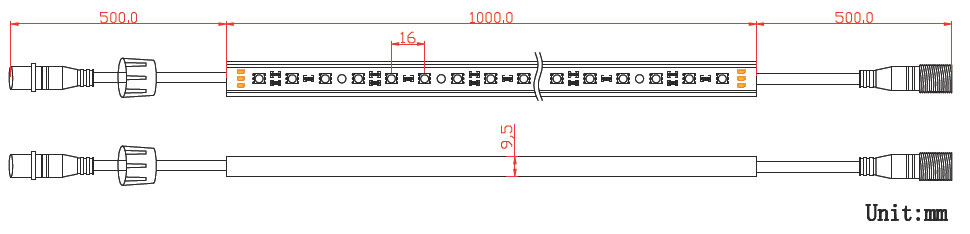

Dimension of JJW-LB5050QP60T-A:
Connection Graph:

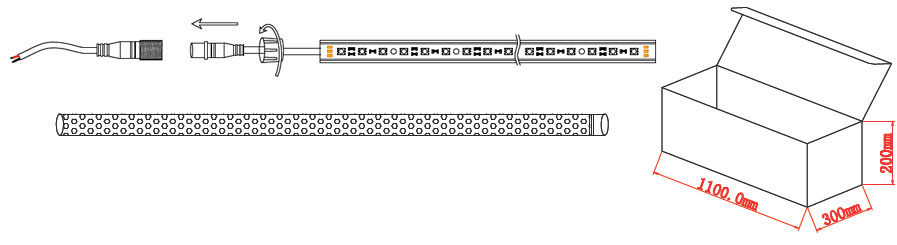

Installation:
Package:
Application:
LED light can be applied for wide range of areas, indoor and outdoor. It can be stick onto the wall and other objects,
or twined round pillar or other objects, decorating door, hall, corridor, cabinet, sculpture, plants, etc.
|
