Products Show

Description：

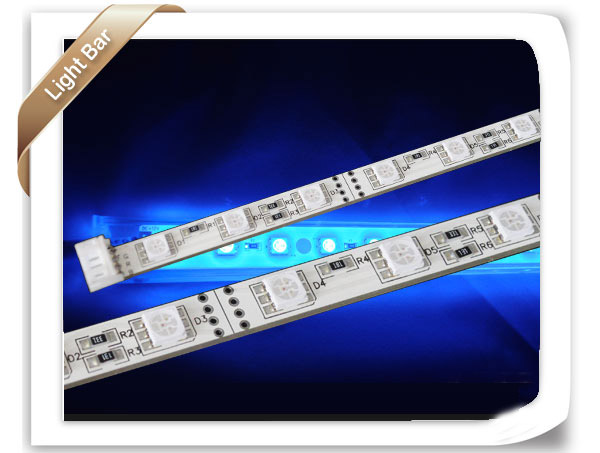

1 LED source:SMD5050 2 LED quantity:30leds 3 power:7.2W 4 Working voltage:12VDC 5 IP rank: IP 20

Feature:
Features:

High brightness SMD5050
Life span: 50,000 hours
Emitting color: RGB color changing
Working Voltage:12V DC
Working Temperature: -40 ~ 50 ℃
Ambinent Humidity: 0% ~ 100% relative humidity
with 2 clips and 4 screws per piece for installation



Parameter:


Part NO.  Waterproof  Rating LED Type  LED Quantity Power Beam Angle  Work Voltage Work
Temperature		 Emitting Color   Parkage
JJW-LB5050QN30T  IP20    SMD5050 30leds  7.2W  120°   12VDC  -40°C-50°C RGB color changing  Bubble bag and carton

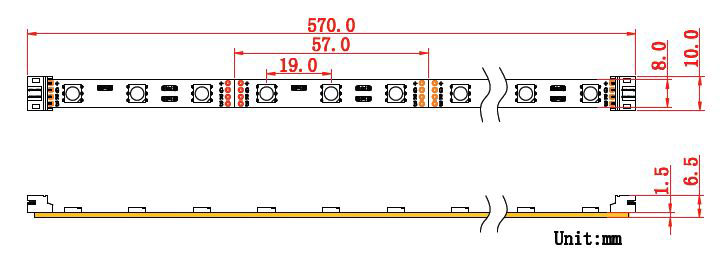

Dimension of JJW-LB5050QN30T:

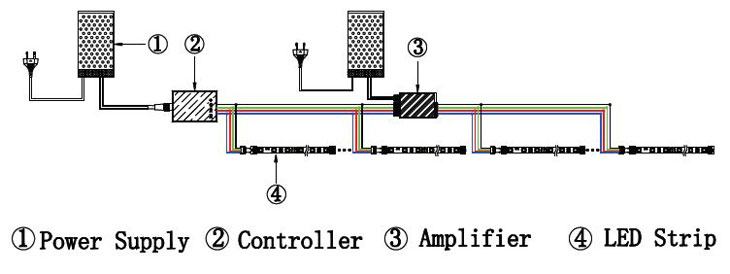

Connection Graph:

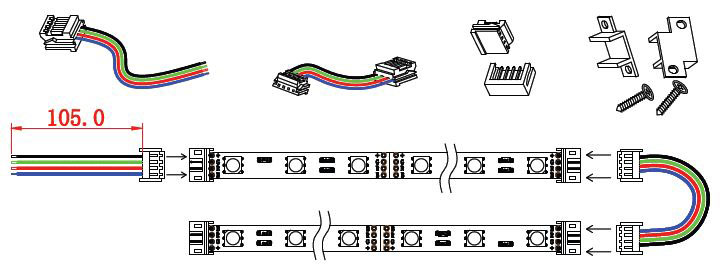

Installation:

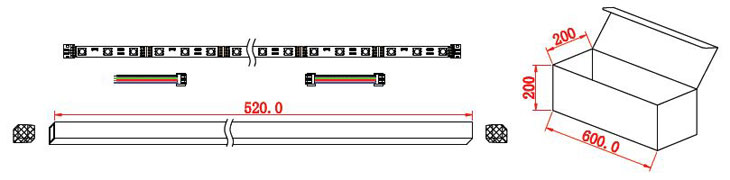

Package:
Application:

LED strip light can be applied for wide range of areas, indoor and outdoor. It can be sticked onto the wall and other objects,
or twined round pillar or other objects, decorating door, hall, corridor, cabinet, sculpture, plants, etc.


Download:
