Description:
1 LED source superflux P5
2 LED quantily 60leds
3 Power 4.8W
4 Size:500*18*10mm
5 Working voltage:12VDC
6 IP rank: IP68
7 Color:Red/Green/Yellow/white.
8 Length 1m available
Features:
High brightness superflux P5
Life span: 50,000 hours
Working Voltage:12V DC as standard.can be customized to 9-18VAC,9-28VDC
Emitting color: Red, Green, Blue, Yellow, Warm white, Pure white, Cool White or any other single color
Working Temperature: -40 ~ 50 ℃
Ambinent Humidity: 0% ~ 100% relative humidity
Completely waterproof,IP68, can light in the water
with 2 clips and 4 screws per piece for installation
Parameter:
| Part NO. |
Waterproof Rating |
LED Type |
LED Quantity |
Power |
Beam Angle |
Work Voltage |
Work
Temperature |
Emitting Color |
Parkage |
| JJW-LBP5XP60T-P |
IP68 |
Superflux |
60leds |
4.8W |
120° |
12VDC |
-40-50℃ |
Red/Green/Blue/Yellow/White |
Bubble bag and carton |

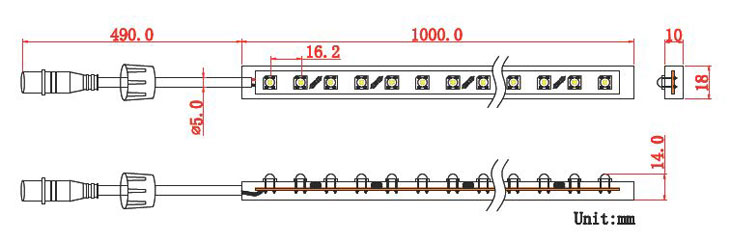

Dimension of JJW-LBP5XP60T-P:

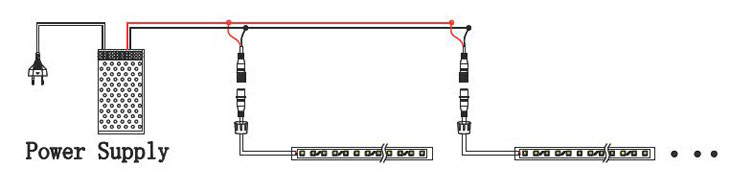

Connection Graph:

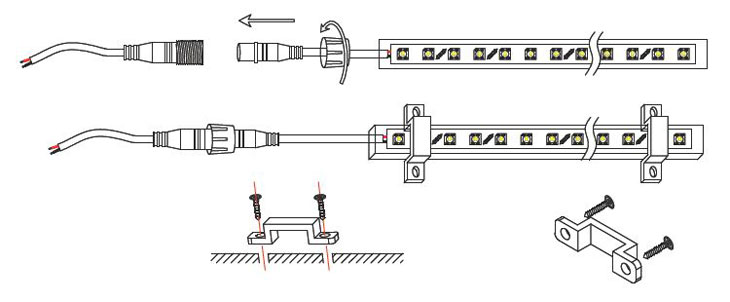

Installation:

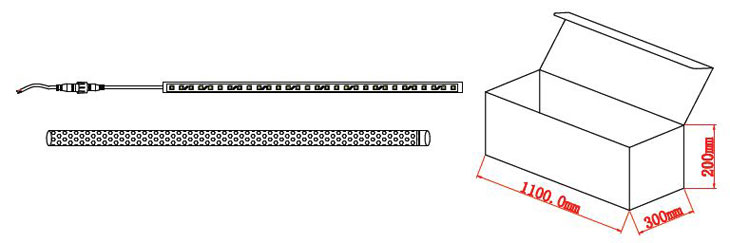

Package:

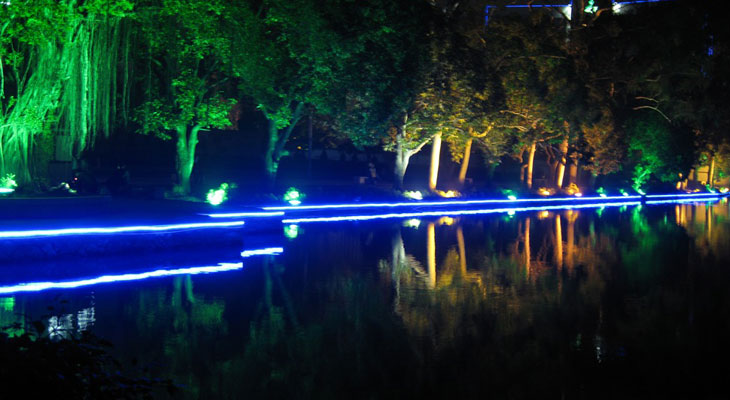

Application:
LED strip light can be applied for wide range of areas, indoor and outdoor. It can be sticked onto the wall and other objects,
or twined round pillar or other objects, decorating door, hall, corridor, cabinet, sculpture, plants, etc.
|
