Products Show

Description：
P31.25mm Dance floor LED display

Feature:
Best Visual Angle Horizontal
180deg
Best Visual Angle Virtical
180deg
Brightness
>700CD/㎡
Refresh Rate
>400Hz/s
Average Power Consupmtion
200W/㎡
Certificate
CE, CCC, FCC, RoHS, ETL
Grey Scale
>8192
MTBF
>5000Hrs
Operating Voltage
AC90～230V
Protection Ratings
IP43
Store Temp
-20℃～50℃
Humidity
10～99%

Detailed P31.25 Dance FloorLED display Description

Dancing floor led display
Seamless stitching, direct trampling of the rain-type ground-exclusive LED display;
RGB deep gray processing, video synchronous display;
Support for EASTAR multi-window flexible player software and interactive software;
The application objectives: the stage on the ground.

P31.25 Dance FloorLED display Cabinet and module Structure

P31.25 Dance FloorLED display Module


P31.25 Dance FloorLED display Cabinet


Pixel Pitch
31.25mm
Module Resolution
16×4
Module Size
500mm×125mm
Physical Density
1024pixels/㎡
LED Arrangement
1R1G1B
LED Type
SMD3528
Drive Mode
Static
Cabinet Size
500×500×65mm
Cabinet Weight
11.5KGS

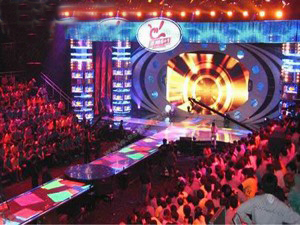

Applications And Case

1.Ultra-thin cabinets and lightweight with Aluminum material, Easy for carrying and installation.Each cabinets around 11.5KG.
2.with Seamless stitching, direct trampling of the rain-type ground-exclusive LED display ,also Fire proof
3.the stage on the ground for Night club, and The large-scale performance stage.

Download:
