Best Visual Angle Horizontal
140deg
Best Visual Angle Virtical
140deg
Brightness
>1,500CD/㎡
Refresh Rate
>1500Hz/s
Average Power Consupmtion
320W/㎡
Certificate
CE, CCC, FCC, RoHS, ETL
Grey Scale
4096grades
MTBF
>5,000Hrs
Operating Voltage
AC90～230V
Protection Ratings
IP43
Store Temp
-40℃～80℃
Humidity
10～99%

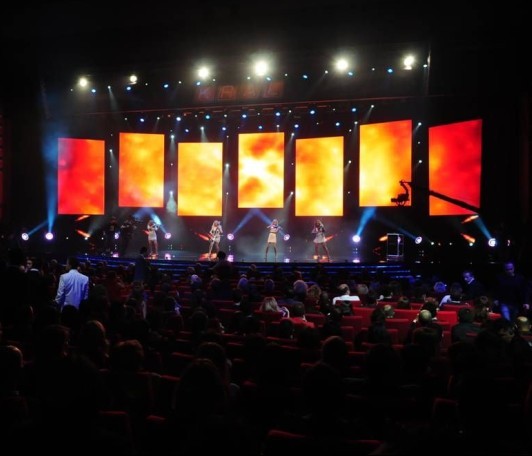

P10 Indoor LED screen Detailed Product Description
•uniform colour technology
•Easy configuration and maintenance
•Lightweight for easy installation
•High refreshment and large viewing angle
•Great for large indoor advertising
P10 Indoor screen Cabinet and LED screen module Structure
Pixel Pitch
10mm
Module Resolution
32×16
Module Size
320mm×160mm
Physical Density
10,000 pixels/㎡
LED Arrangement
3in1
LED Type
SMD 3528
Drive Mode
1/8 Scan
Cabinet Size
1280×960×150 mm
Cabinet Weight
60KG
|
